Safety & Security Starts with Eco4 T Series
Introducing Eco4 T series tracking devices. Superior GNSS performance, IP67 housing, and wide application for safety and security.
Eco4 T Series
Seven new tracking devices for different situations.
FM-Eco4+ E T
FM-Eco4+ 3G E T
✓ 2G/3G connectivity
✓ Rugged housing (IP67)
✓ External antenna
✓ Internal battery
FM-Eco4+ T
FM-Eco4+ 3G T
✓ 2G/3G connectivity
✓ Rugged housing (IP67)
✓ Internal antenna
✓ Internal battery
FM-Eco4 light+ T
FM-Eco4 light+ 3G T
✓ 2G/3G connectivity
✓ Quick installation
✓ Internal antenna
✓ Internal battery
FM-Eco4 light T
✓ 2G connectivity
✓ Quick installation
✓ Internal antenna
Rugged Housing
Fully waterproof and dustproof housing (IP67 certified), protects device from water, dirt and constant vibration.
The device can be installed outside the cabin (i.e. near the engine) and successfully operate. Water, dirt and other environmental factors will not affect and damage the device.
Concealed Installation
The external antenna allows device to be installed in areas, that are hard to find and access or are surrounded by metal parts.
This way device is protected from being found and intentionally removed.
In case the external antenna is disconnected or jamming activities occur, a notification is sent to the back office.
Industry Applications
Eco4 T series is used for fleet management solutions with a special focus on safety and security.
Logistics
Automotive OEM
Trailer tracking
Rental and leasing
Corporate fleets
Combine Multiple Accessories
4xDIN, 2xAIN, 2xDOUT, 1-Wire interfaces enable to combine multiple sensors and accessories for safety and security solutions.
Ignition Blocking (kill switch)
Buzzer/Siren
Door Sensors
Eco-Drive Panel
Panic Button
Additional Equipment Usage
Superior GNSS Performance
Powered by premium Ublox EVA-M8M GNSS module. Highly accurate location data, quick first GPS fix and advanced features to enhance GNSS performance.
GPS + Galileo + GLONASS
Eco4 T series can operate in a multi-constellation mode, using GPS, GLONASS and Galileo systems at once. This way, tracking device can use more satellites for positioning and provide even more accurate coordinates.
Advanced GNSS Filters
GNSS filters eliminate inaccurate and illogical coordinates that can appear due to certain landscapes – mountainous terrain, underground parking, urban areas.
SBAS
Satellite-based augmentation systems (SBAS) improve GNSSs systems performance. It improves accuracy, reliability and availability, through the integration of external information into the calculation.
Autocalibration
Eco4 T series come with automatic accelerometer calibration. Use accelerometer based features such as eco-drive, roll over detection, etc.
Technical Specification
Safety & Security
- Prevent unauthorized use
- Remotely block vehicle engine
- Recover stolen vehicle
Driver Behaviour Monitoring
- Monitor driver behaviour
- Reduce fuel consumption
- Improve fleet safety
- Real-time notifications for driver
- Educate driver
Fuel Monitoring
- Monitor fuel level
- Prevent fuel thefts
- Control fuel tank
- Get accurate data with Ruptela FLS
- Receive reports
Fleet Management
- Increase fleet efficiency and visibility
- Monitor and control use of fleet
- Identify responsible drivers

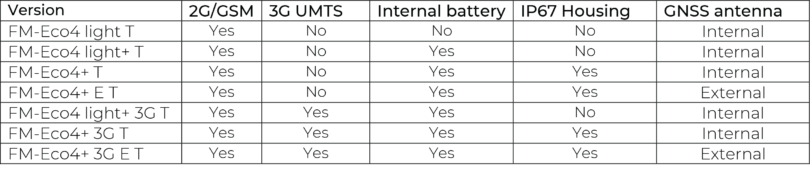

Eco4 T series overview
- UMTS connectivity (3G)
- GSM connectivity (2G)
- IP67 housing (FM-Eco4+ T, FM-Eco4+ E T, FM-Eco4+ 3G T,FM-Eco4+ 3G E T)
- Internal GNSS antenna (FM-Eco4+ T, FM-Eco4 light+ T, FM-Eco4 light T, FM-Eco4+ 3G T, FM-Eco4 light+ 3G T)
- External GNSS antenna (FM-Eco4+ E T & FM-Eco4+ 3G E T)
- Built-in battery (except FM-Eco4 light T)
- 4x Digital inputs
- 2x Analog inputs
- 2x Digital outputs
- 1-Wire interface
- Mini USB and 3x indications LEDs
- Sleep and deep sleep modes
- Accelerometer
- Commands and configuration via SMS/GPRS/USB (FOTA)
- Jamming detection
- Disconnected antenna detection ( FM-Eco4+ E T & FM-Eco4+ 3G E T)
